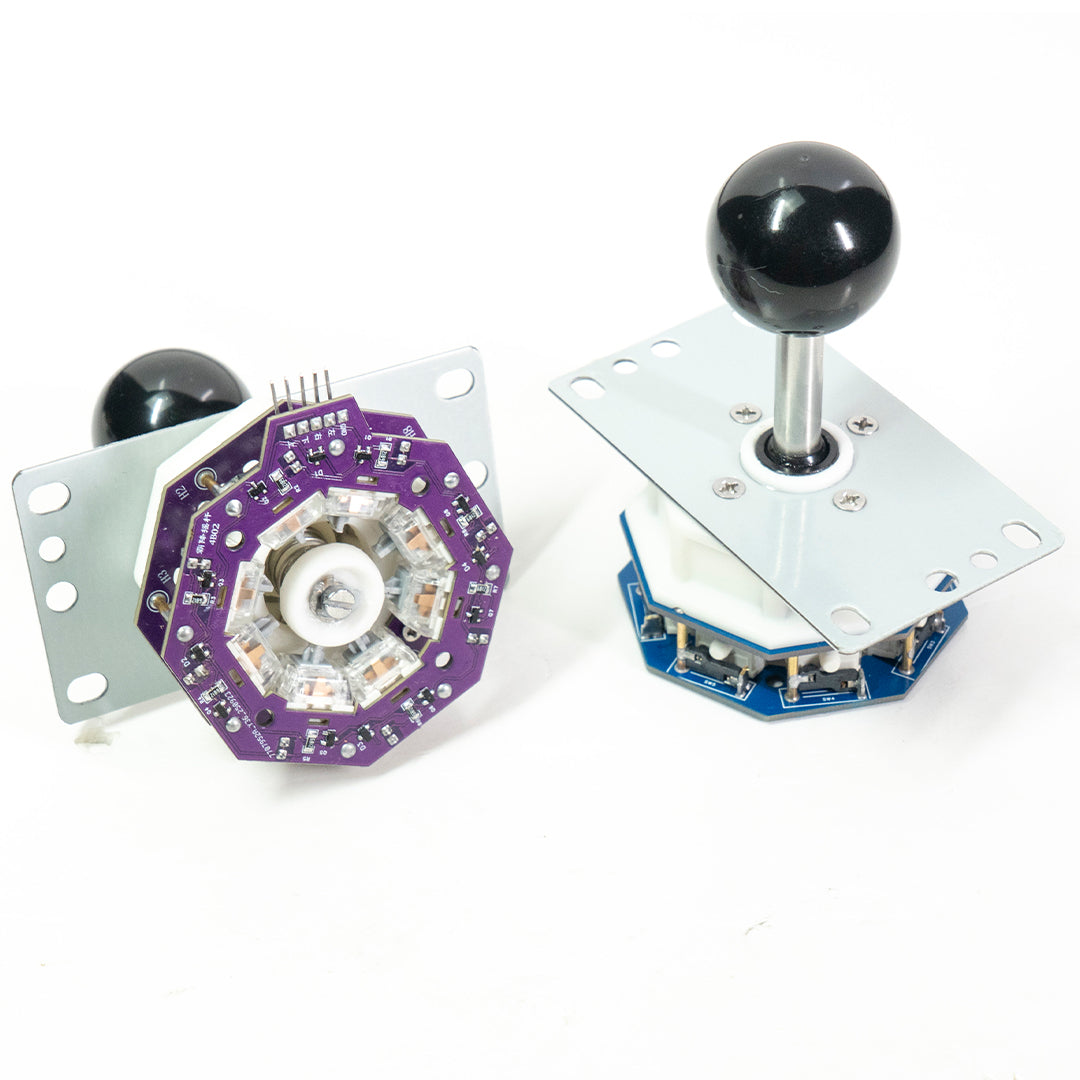

TIKITAKA® FTG PCB-Type Joystick Lever

Independent 8-Way Control Joystick

Not Compatible: This product is physically incompatible (cannot be installed) with the "Magnetic Replacement Joystick Shaft" sold in our store.

Dual-Trigger Structure: Two independent triggers are placed in each direction. An input is only registered as valid when both triggers are activated simultaneously, ensuring more precise directional recognition.

Allowance Angle Zone: Each direction features a "tolerance zone" that prevents accidental inputs while also avoiding missed command inputs, making diagonal directions more stable.

Stronger than Traditional 4-Trigger Designs: Evolved from the traditional "single-trigger for instant registration" to a "dual-trigger consensus registration" system, effectively reducing false inputs caused by wobble, shaft misalignment, or micro-vibrations.

Consistent Combos: Directional boundaries are clearly defined, making it easier to replicate motion inputs and charge moves, allowing practice results to translate steadily into real combat performance.

Magnetic Snap-Back Design ensures accurate, drift-free input registration. Combined with a metal ball bearing, it prevents joystick wobble. The stainless steel joystick shaft offers both aesthetics and durability, with rust-resistant properties.

This product is available in four slot-length versions, allowing you to choose according to your usage habits:
·  15.6mm
·  16.9mm
·  19.3mm
·  20.3mm

Operating Principle (Simplified)

Per Direction = Dual Triggers: When the joystick is moved into a corresponding direction, the direction is only considered "confirmed" when both triggers are pressed simultaneously.

Tolerance Window: An angular/ travel tolerance range is set around the target direction, ensuring that even with slight player deviation, the target direction is stably locked in.

More Reliable Diagonals: Diagonal directions also require the corresponding combination of two trigger sets to be satisfied, reducing misregistrations such as "up-forward being misinterpreted as forward."

Features

• 8 independent control circuit units

• Added magnetic snap-back function

Compatible Platforms

PC / Switch / Switch 2 / PS4 / PS5

Pre-Purchase Notes

Please refer to the dimension diagram to measure your device's case size and confirm suitability with this joystick.

Shipping Location

Shipped from China

Dimensions, Weight, and Package Contents

• Weight: Approx. 400g

• Package Contents: Default includes three types of restrictor gates (square-arc, round, octagonal); the square-arc gate is pre-installed. Also includes lightweight (0.7) and heavy (0.9) springs.

• Due to varying customs clearance policies in different countries, some countries may not allow the shipment of grease (lubricant). Please inquire before purchasing if you have any questions.
